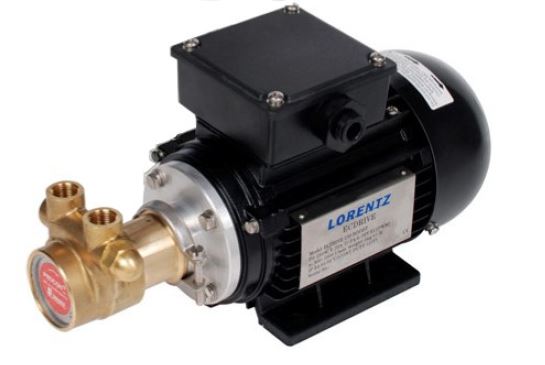

Lorentz PS2-150 Boost-240
System overview
Head : max. 50 m
Flow rate : max. 0,98 m³/h
Technical Data
Controller PS2-150
- Controlling and monitoring
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature
- Integrated MPPT (Maximum Power Point Tracking)
- Battery operation: Integrated low voltage disconnect
Power : max. 0,30 kW
Input voltage : max. 50 V
Optimum Vmp** : > 17 V
Motor current : max. 22 A
Efficiency : max. 98 %
Ambient temp. : -40…50 °C
Enclosure class : IP68
Motor ECDRIVE 150-BOOST
- Maintenance-free brushless DC motor
- Premium materials, stainless steel: AL/AISI 304
- No electronics in the motor
Rated power : 0,3 kW
Efficiency : max. 92 %
Motor speed : 280…1 750 rpm
Insulation class : F
Enclosure class : IPX4
Pump End PE BOOST-60
- Premium materials: brass
- Optional: dry running protection
- Centrifugal pump
