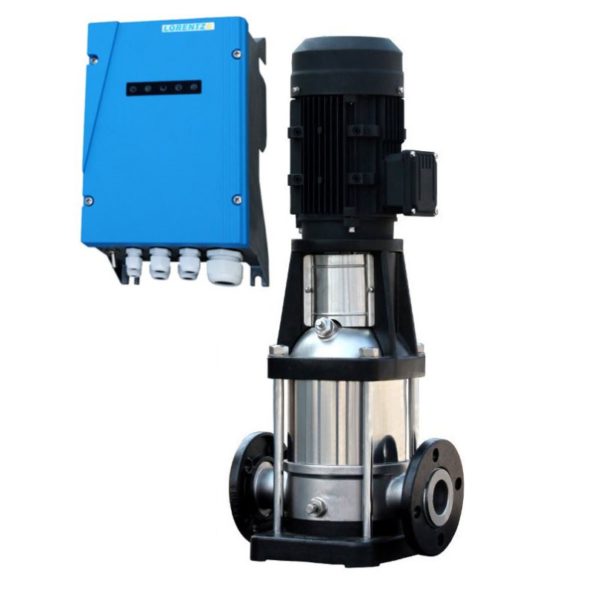

Lorentz PS2-4000 CS-F16-3-D
System overview
Head : max. 40 m
Flow rate : max. 22 m³/h
Technical Data
Controller PS2-4000
- Controlling and monitoring
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature
- Integrated MPPT (Maximum Power Point Tracking)
- Integrated Sun Sensor
Power : max. 4,0 kW
Input voltage : max. 375 V
Optimum Vmp** : > 238 V
Motor current : max. 14 A
Efficiency : max. 98 %
Ambient temp. : -40…50 °C
Enclosure class : IP68
Motor ECDRIVE 4000 CS-F
- Maintenance-free brushless DC motor
- Premium materials, stainless steel: AL/AISI 304
Rated power : 4,0 kW
Efficiency : max. 92 %
Motor speed : 900…3 300 rpm
Insulation class : F
Enclosure class : IPX4
Pump End PE CS-F16-3
- Premium materials
- Optional: dry running protection
- Centrifugal pump
