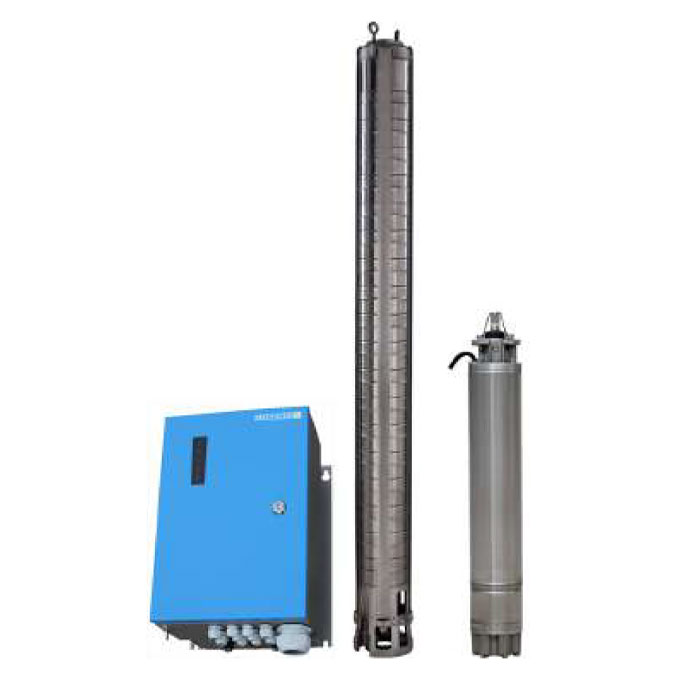

Lorentz PSk3-7 C-SJ 8-30 Solar Submersible Pump

R138 ,615.69

Solar Submersible Pump System for 6″ wells

Data sheet: LORENTZ_PSk3-7_c-sj8-30_-pi_en_ver310190



Lorentz PSk3-7 C-SJ 8-30 Solar Submersible Pump

System overview

Head :                                      max. 160 m
Flow rate :                              max. 13 m³/h

Technical Data

Controller PSk3-7

  • High efficiency solar pump controller
  • Integrated hybrid power functions to mix solar with grid / generator
    power
  • Integrated MPPT (Maximum Power Point Tracking)
  • Multiple analogue and digital sensor
  • Simple configuration with LORENTZ Assitant App
  • Onboard data logging and system monitoring with real-time and
    historic data views
  • Inbuilt water applications to manage your pumping system
  • SunSensor included for unique pump and motor protection
  • Active temperature management
    Power :                                 max. 8,3 kW
    Input voltage :                        max. 850 V
    Optimum Vmp** :                        > 575 V
    Motor current :                         max. 13 A
    Efficiency :                              max. 98 %
    Ambient temp. :                     -25…60 °C
    Enclosure class :                             IP66

Motor AC DRIVE SUB 6″ 5.5kW

  • Highly efficient 3-phase AC motor
  • Frequency: 30…54 Hz
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor
    Efficiency :                                max. 85 %
    Motor speed :               1.710…3.080 rpm
    Power factor :                                    0,88
    Insulation class :                                    F
    Enclosure class :                              IP68
    Submersion :                         max. 150 m

Pump End PE C-SJ8-30

  • Non-return valve
  • Premium materials, stainless steel: AISI 304
  • Centrifugal pump
    Efficiency :                max. 56 %

Pump Unit PU7k C-SJ8-30 (Motor, Pump End)
Borehole diameter :                         min. 6,0 in
Water temperature  :                 max. 30 °C****
