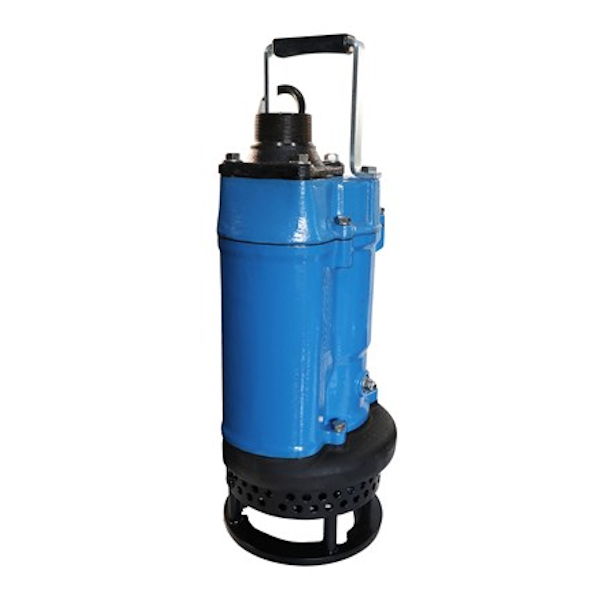

Tsurumi KTD22.0 380V

R48 ,111.40

This pump operates on a 2KW motor, the outlet of this model is 50mm. This pump comes with a 8m cable and can handle solids of up to 10mm in diameter. This pump’s dry weight is 38kg, built by Tsurumi, this pump belongs to the Tsurumi KTD-series.

Tsurumi KTD22.0 380V

Tsurumi KTD Series

This range is a cast iron heavy-duty slurry pump employing the KTZ Series as the base. Tsurumi agitator pump KTD series is a cast iron made, heavy-duty slurry pump employing the KTZ Series as the base. An agitator is provided to assist smooth suction of the pumping fluid. The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to place in a confined space.

Special Features:

  • Discharge sizes from 2-3 inches and horsepower ranges from 2.7-4 hp.
  • 2 pole, 3600 rpm motors.
  • Rugged cast iron construction.
  • Dual silicon carbide mechanical seals.
  • Internal Thermal motor protection and Tsurumi’s exclusive oil lifter.
  • Anti wicking cable entrance.
  • Suitable for transferring or draining bentonite slurry used for slurry drilling, draining slurry mixed water in civil engineering works or foundation works.
