2,2kW

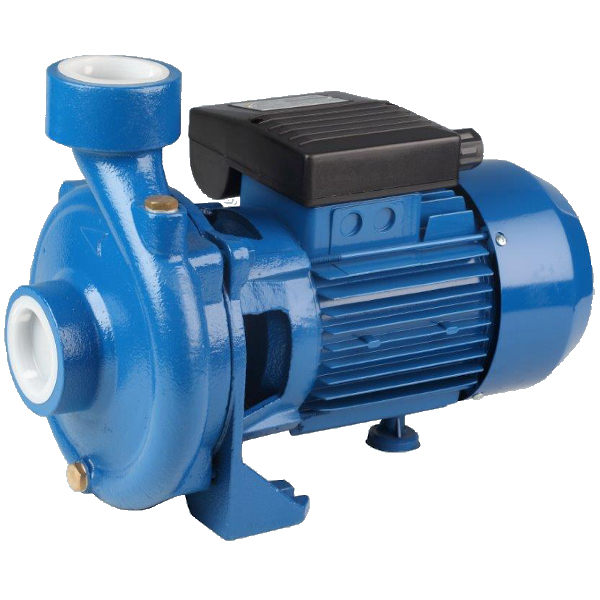

Vansan 2DK30 pump range

Performance

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
Suitable for industrial use and urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long distance water transfer, heating ventilation and air controlling, circulations and pressure boosting for cold and hot water, and supporting equipment etc.

Features

• IEC 60034-1
• IEC 335-1
• IEC 34-1
• ISO 2548
• Single phase power supply with capacitor permanently activated.
• Insulation class: B
• Protection: IP44
• Speed of rotation:2850rpm
• Continuous duty: S1
• Pump body: cast iron.
• Impeller: Brass.
• Motor shaft: AISI1045.
• Mechanical seal: NBR/Graphite/Ceramic.
• Internal thermal protector.

Applications

• Suction lift up to 6-8m with foot valve.
• Maximum operating pressure: 8 bar.
• Maximum ambient temperature: +40C.
• Liquid temperature up to +90C.
• Maximum altitude +1000m.
